power supplies - Pwr sup.unit switched-mode, modular, 100W, 24VDC, Uout 21....27VDC

Prod code: 31534

TXM100-124 PDF

TXM100-124

Price:  73.11 €
VAT:  17.55 €
Final price with tax:  90.65 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 100W
Output voltage 24V DC, 21...27V DC
Output current 4.5A
Supply voltage 90...264V AC, 127...370V DC
Weight 455g
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 20...60°C
Body dimensions 129 x 99 x 38mm
Power supply/converter features rated parameters obtained at full load
Efficiency 88%
Series TXM

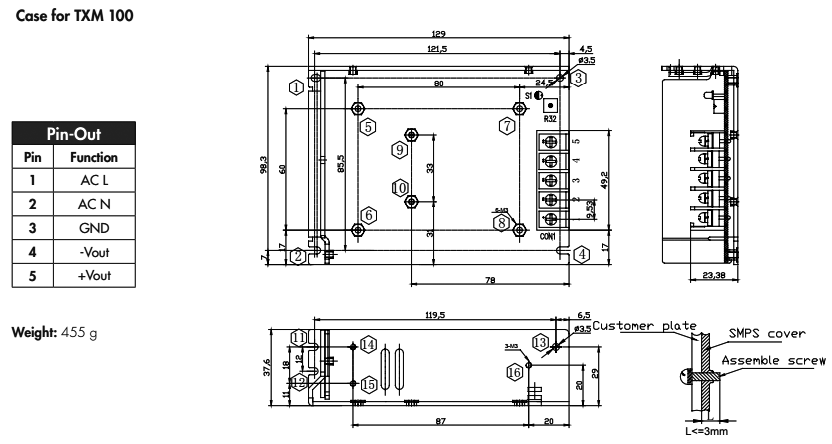

Dimensions  VIEW

Availability: With order
