Pwr sup.unit pulse, 88W, 5VDC, 24VDC, 8A, 2A, 88÷264VAC, 125÷373VDC - 27.10 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 88W, 5VDC, 24VDC, 8A, 2A, 88÷264VAC, 125÷373VDC	Prod code: 17255
PDF	RD-85B

Click to enlarge Pwr sup.unit pulse, 88W, 5VDC, 24VDC, 8A, 2A, 88÷264VAC, 125÷373VDC

Price:	27.10 €
VAT:	6.51 €
Final price with tax:	33.61 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	88W
Output voltage	5V DC
Output voltage 2	24V DC
Output current	8 (2...10)A
Output current 2	2 (0.3...2.5)A
Supply voltage	88...264V AC, 125...373V DC
Weight	600g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	2
Operating temperature	25...70°C
Body dimensions	159 x 97 x 38mm
Power supply/converter features	rated parameters obtained at full load
Series	RD-85
Efficiency	80%
Case type	901C
Associated items	DRL-02, DRP-03A

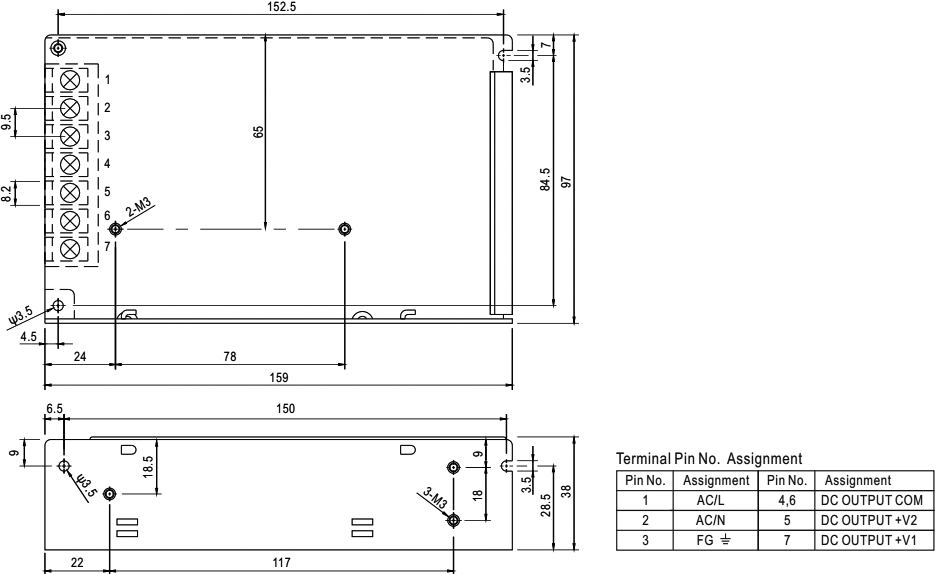

Dimensions	VIEW

Availability: With order
