Pwr sup.unit pulse, 66W, 5VDC, 12VDC, 6A, 3A, 88÷264VAC, 125÷373VDC - 20.33 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 66W, 5VDC, 12VDC, 6A, 3A, 88÷264VAC, 125÷373VDC	Prod code: 17252
PDF	RD-65A

Click to enlarge Pwr sup.unit pulse, 66W, 5VDC, 12VDC, 6A, 3A, 88÷264VAC, 125÷373VDC

Price:	20.33 €
VAT:	4.88 €
Final price with tax:	25.21 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	66W
Output voltage	5V DC
Output voltage 2	12V DC
Output current	6 (0.3...8)A
Output current 2	3 (0.2...4)A
Supply voltage	88...264V AC, 125...373V DC
Weight	440g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	2
Operating temperature	25...70°C
Body dimensions	129 x 98 x 38mm
Power supply/converter features	rated parameters obtained at full load
Series	RD-65
Efficiency	79%
Case type	903
Associated items	DRL-01, DRP-03A

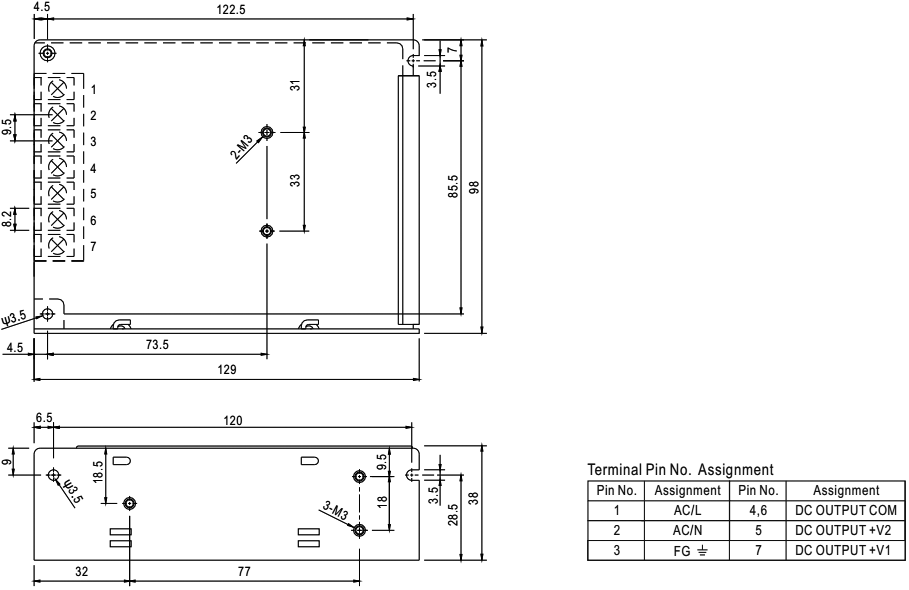

Dimensions	VIEW

Availability: With order
