power supplies - Pwr sup.unit pulse 48V 3.2A Electr.connect terminal block

Prod code: 10659

SP-150-48 PDF

SP-150-48

Price:  42.92 €
VAT:  10.30 €
Final price with tax:  53.23 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 153.6W
Output voltage 48V DC, 45.6...52.8V DC
Output current 3.2A
Supply voltage 85...264V AC, 120...370V DC
Weight 760g
Electrical connection terminal block
Protection overload, overheating, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 10...55°C
Body dimensions 199 x 99 x 50mm
Power supply/converter features rated parameters obtained at full load
Series SP-150
Efficiency 85%
Case type 916A
Additional functions active PFC
Associated items DRL-02, DRP-02A, MHS-012

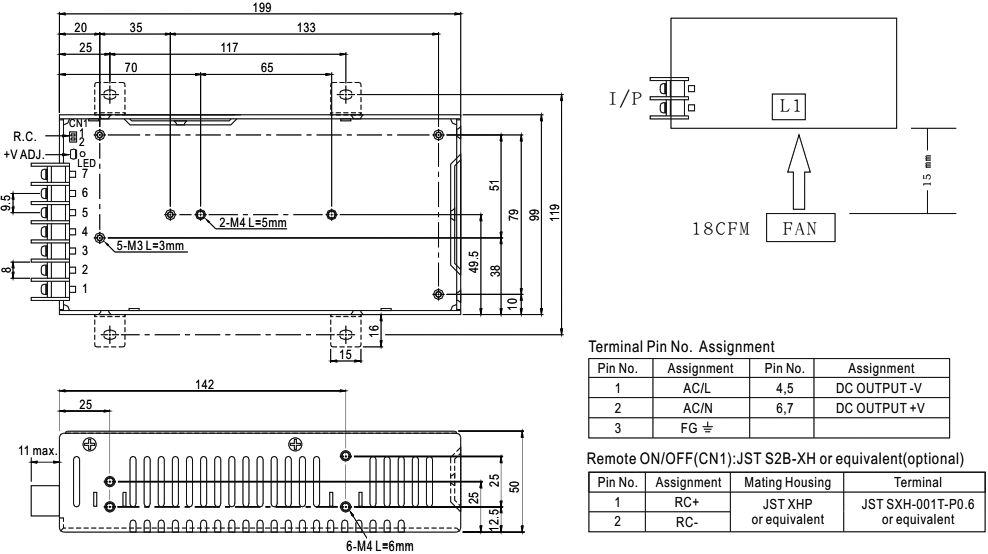

Dimensions  VIEW

Availability: With order
