Pwr sup.unit pulse, 321.6W, 24VDC, 13.4A, 88÷264VAC, 124÷370VDC - 54.22 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 321.6W, 24VDC, 13.4A, 88÷264VAC, 124÷370VDC	Prod code: 17276
PDF	RSP-320-24

Click to enlarge Pwr sup.unit pulse, 321.6W, 24VDC, 13.4A, 88÷264VAC, 124÷370VDC

Price:	54.22 €
VAT:	13.01 €
Final price with tax:	67.24 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	321.6W
Output voltage	24V DC, 20...26.4V DC
Output current	13.4A
Supply voltage	88...264V AC, 124...370V DC
Weight	900g
Electrical connection	terminal block
Protection	overload, overheating, voltage growth, short-circuit
Mounting	for building in
Number of outputs	1
Operating temperature	30...70°C
Body dimensions	215 x 115 x 30mm
Power supply/converter features	rated parameters obtained at full load
Series	RSP-320
Efficiency	89%
Case type	207A
Additional functions	active PFC
Associated items	MHS-012

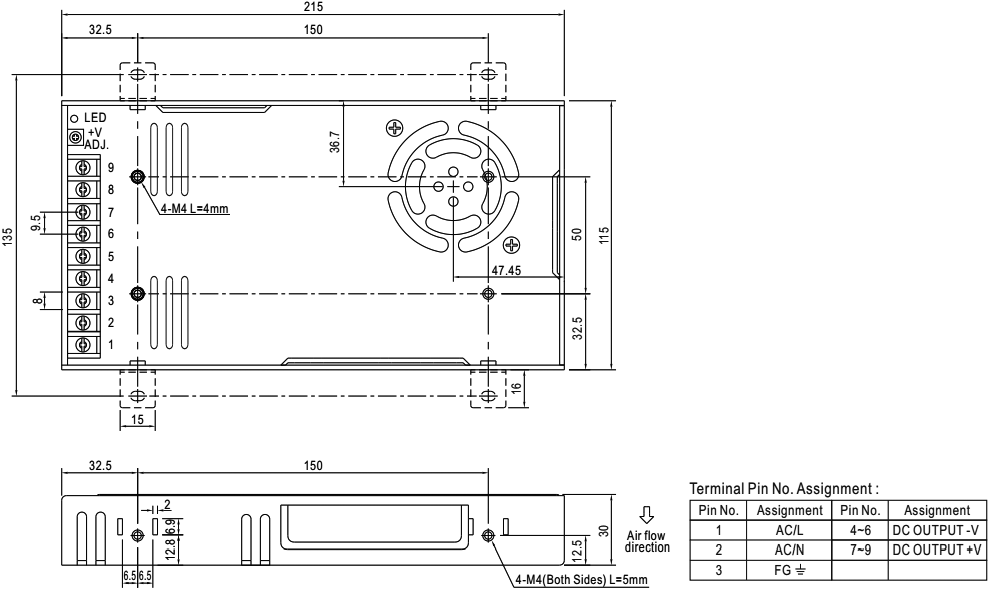

Dimensions	VIEW

Availability: With order
