Specifications |
| Manufacturer |
MEAN WELL |
| Pwr sup. unit type |
switched-mode |
| Kind of power supply |
modular |
| Power |
316W |
| Output voltage |
5V DC |
| Output voltage 2 |
15V DC |
| Output voltage 3 |
24V DC |
| Output voltage 4 |
15V DC |
| Output current |
20 (2.5...20)A |
| Output current 2 |
8 (0...10)A |
| Output current 3 |
3 (0.2...5)A |
| Output current 4 |
1.6 (0.2...1.6)A |
| Supply voltage |
90...264V AC, 127...370V DC |
| Weight |
1.2kg |
| Electrical connection |
terminal block |
| Protection |
overload, overheating, voltage growth, short-circuit |
| Mounting |
for building in |
| Number of outputs |
4 |
| Operating temperature |
10...60°C |
| Body dimensions |
215 x 115 x 50mm |
| Power supply/converter features |
rated parameters obtained at full load |
| Series |
QP-320 |
| Efficiency |
83% |
| Case type |
912I |
| Additional functions |
active PFC |
| Associated items |
MHS-012 |

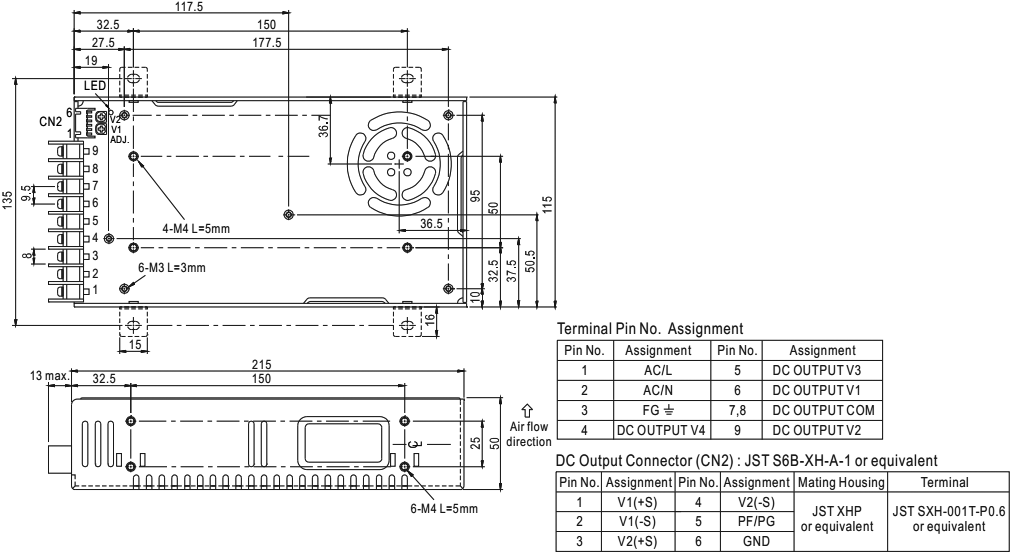

| Dimensions |
 VIEW |
| |
|
