Din rail power supply - Pwr sup.unit pulse, 240W, 48VDC, 5A, 180÷550VAC, 254÷780VDC

Prod code: 16039

WDR-240-48 PDF

WDR-240-48

Price:  123.51 €
VAT:  29.64 €
Final price with tax:  153.15 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 240W
Output voltage 48V DC, 48...55V DC
Output current 5A
Supply voltage 180...550V AC, 254...780V DC
Electrical connection terminal block, screw terminals
Mounting DIN
Body dimensions 63 x 125.2 x 113.5mm
Weight 1.06kg
Number of outputs 1
Operating temperature 30...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 91%
Additional functions active PFC
Power supply/converter features rated parameters obtained at full load
Series WDR-240
Case type 979B

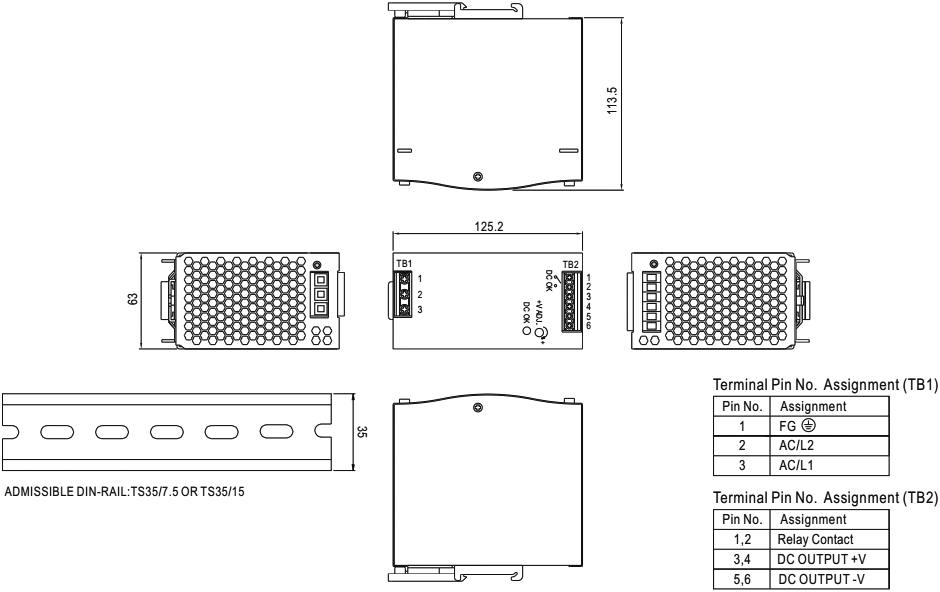

Dimensions  VIEW

Availability: With order
