power supplies - Pwr sup.unit pulse 15.6W Uout 12VDC 1.2A 85÷264VAC Outputs 1

Prod code: 12784

RS-15-12 PDF

RS-15-12

Price:  7.28 €
VAT:  1.75 €
Final price with tax:  9.03 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 15.6W
Output voltage 12V DC
Output current 1.2A
Supply voltage 88...264V AC, 120...370V DC
Weight 130g
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 25...70C
Body dimensions 62.5 x 51 x 28mm
Power supply/converter features rated parameters obtained at full load
Series RS-15
Efficiency 81%
Case type 971A

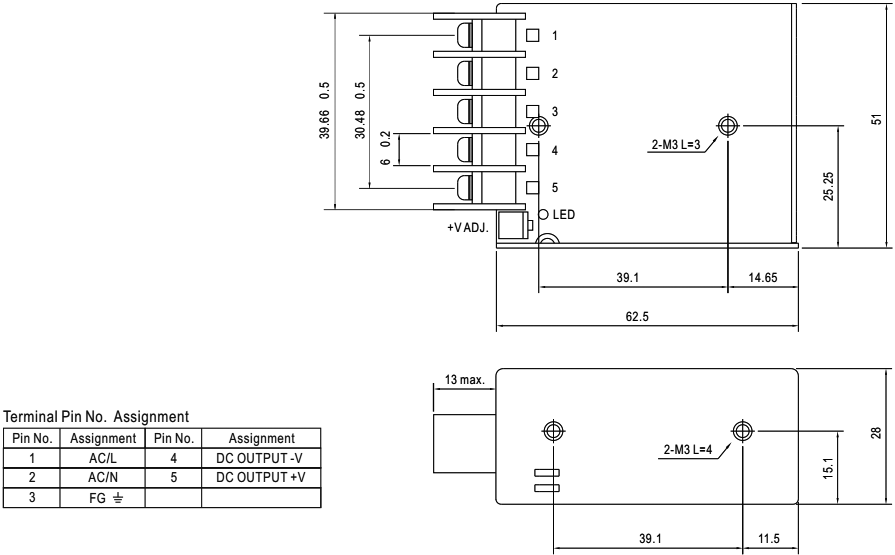

Dimensions  VIEW

Availability: On stock
