Τροφοδοτικό - Power supply switched-mode, modular, 206.4W, 48VDC, 199x98x38mm

Κωδικός: 30633

HRPG-200-48 PDF

HRPG-200-48

Τιμή χωρίς ΦΠΑ:  76.24 €
Αξία ΦΠΑ:  18.30 €
Τελική με ΦΠΑ:  94.54 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Kind of power supply modular
Power 206.4W
Body dimensions 199x98x38mm
Output current 4.3A
Weight 770g
Operating temperature -40...70°C
Number of outputs 1
Electrical connection terminal block
Mounting for building in
Protection overheating,
Supply voltage 85...264V AC,
Efficiency 89%
Series HRPG-200
Kind of case 902E
Additional functions active PFC
Output voltage 40.8...55.2V DC,

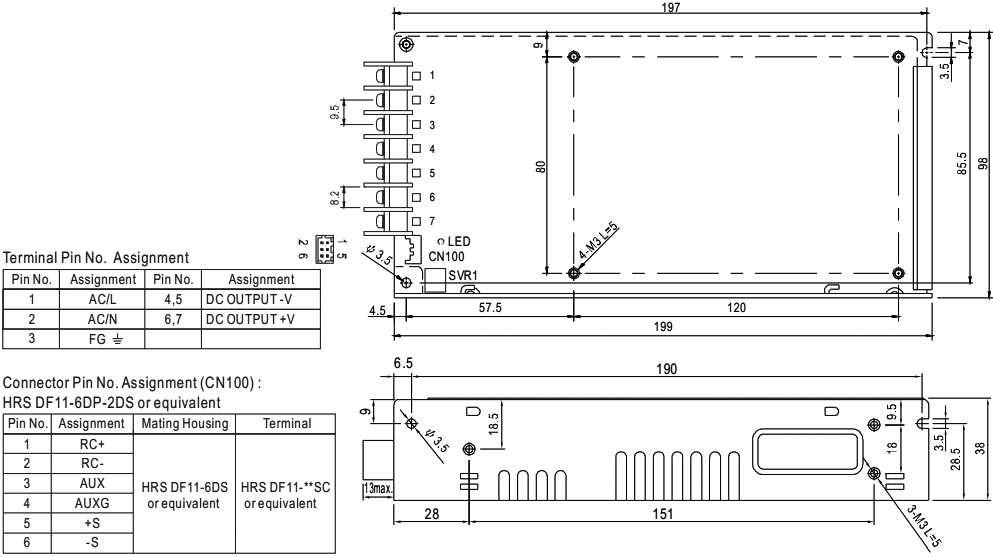

Dimensions  VIEW
Gross weight 761.35 g

Διαθεσιμότητα: Με παραγγελία
