Trimmer - Potentiometer mounting, single turn,horizontal, 50kŮ, 250mW
Prod code:
42820
PDF
PT15NV-50K
Click to enlarge
Price:
0.55 €
VAT:
0.13 €
Final price with tax:
0.68 €
Amount:
Usually shipped within 2-3 business days.
Usually shipped within 2-3 business days.
Specifications
Manufacturer
PIHER
Type of potentiometer
mounting
Resistance
50kΩ
Power
0.25W
Tolerance
±20%
Characteristics
linear
Manufacturer series
PT15NV
Potentiometer standard
15mm
Mechanical rotation angle
265 ±5°
Mounting
THT
Track material
carbon
Terminal pitch
12.5x10mm
Electrical rotation angle
250 ±20°
Body dimensions
Ø15x6mm
Torque
0.5...2.5Ncm
Operating temperature
-25...70°C
Diameter
15mm
Height
6mm
Operating voltage
250V
Kind of potentiometer
horizontal, single turn

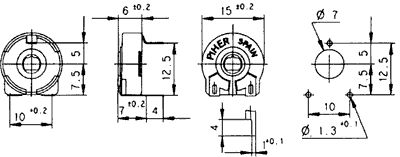

Dimensions
VIEW
Availability:
With order
