Trimmer - Potentiometer mounting, single turn, horizontal, 4.7MÙ, 0.15W
Prod code:
24484
PDF
CA9V-4M7
Click to enlarge
Price:
0.33 €
VAT:
0.08 €
Final price with tax:
0.41 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
ACP
Potentiometer type
mounting
Potentiometer kind
single turn, horizontal
Resistance
4.7MΩ
Power
0.15W
Tolerance
30%
Characteristics
linear
Potentiometer series
CA9V
Potentiometer standard
9mm
Mechanical rotation angle
240 ±5°
Torque
0,4...2Ncm
Max. operating voltage
200V
Operating temperature
25...70°C
Mounting
THT
Terminal pitch
5x10mm
Track material
carbon
Electrical rotation angle
220 ±20°
Body dimensions
10 x 10 x 5mm
Potentiometer features
rectangle hole suitable for screwdriver

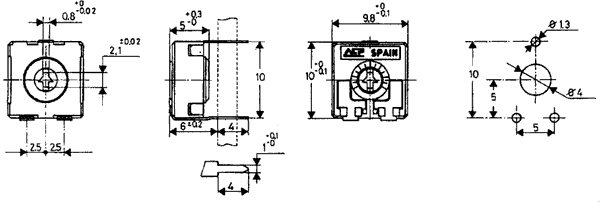

Dimensions
VIEW
Availability:
On stock
