Multiturn pot - Potentiometer mounting, multiturn, 500Ω, 500mW, THT, ±10%, linear	Prod code: 36717
PDF	T93YB500R

Click to enlarge Potentiometer mounting, multiturn, 500Ω, 500mW, THT, ±10%, linear

Price:	1.73 €
VAT:	0.42 €
Final price with tax:	2.15 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	VISHAY
Type of potentiometer	mounting
Kind of potentiometer	multiturn
Resistance	500Ω
Power	500mW
Mounting	THT
Tolerance	±10%
Characteristics	linear
Potentiometer series	T93YB
Track material	cermet
Operating temperature	-55...155°C
Potentiometer standard	3/8"
Temperature coefficient	100ppm/°C
Body dimensions	9.8x9.8x5mm
Terminal pitch	2.5x2.5mm
Number of electrical turns	19 ±2
Max. operating voltage	250V
Number of mechanical turns	22 ±5
Similar models from other manufacturers	64Y, 67Y, 3296Y
IP rating	IP67
Torque	1,5Ncm

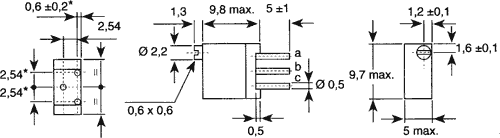

Dimensions	VIEW
Schematic diagram	VIEW
Gross weight	0.801 g

Availability: With order
