Specifications |
| Manufacturer |
VISHAY |
| Potentiometer type |
mounting |
| Potentiometer kind |
multiturn |
| Resistance |
100kΩ |
| Power |
250mW |
| Number of mechanical turns |
15 ±5 |
| Tolerance |
±10% |
| Characteristics |
linear |
| Potentiometer series |
T63YB |
| Body dimensions |
6.8 x 6.8 x 5mm |
| Potentiometer standard |
1/4" |
| Mounting |
THT |
| Operating temperature |
55...155°C |
| Temperature coefficient |
100ppm/°C |
| Number of electrical turns |
13 ±2 |
| Track material |
cermet |
| Terminal pitch |
2.5x2.5mm |
| Max. operating voltage |
250V |
| Sealing |
IP67 |
| Torque |
1Ncm |

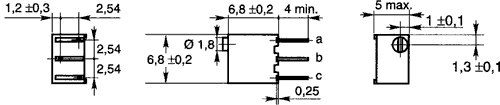

| Dimensions |
 VIEW |
| Schematic diagram |
VIEW |
| |
|
