Automatic Fuse - Overcurrent breaker, 240VAC, 48VDC, 5A, Contacts SPST, Poles no 1
Prod code:
28790
PDF
T9-611P-5A
Click to enlarge
Price:
2.87 €
VAT:
0.69 €
Final price with tax:
3.56 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
SCHURTER
Protection type
overcurrent breaker
Rated voltage
240V AC, 48V DC
Maximum current
5A
Contacts configuration
SPST
Number of poles
1
Mounting
SNAP-IN, on panel
Operating temperature
5...60°C
Breaker features
dust proof (with protective cap)
Breakers application
UPS, industrial appliance, household appliance
Leads
6.3x0.8mm connectors
Weight
9g
Mounting hole diameter
˜16mm
Dielectric strength
1.5kV

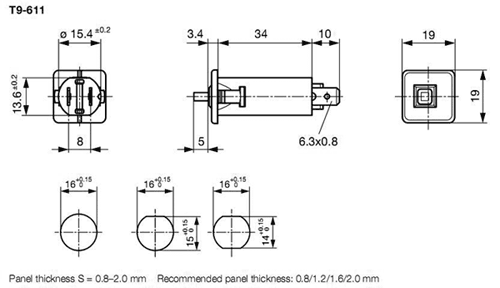

Dimensions
VIEW
Availability:
On stock
