Temperature Control - Module regulator, temperature, SPST-NO, 4÷20mA, panel, 240VAC/3A

Prod code: 456

AT903-1141000 PDF

AT903-1141000

Price:  75.39 €
VAT:  18.09 €
Final price with tax:  93.48 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer ANLY ELECTRONICS
Type of module regulator
Kind of temperature sensor JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T
Controlled parameter temperature
Kind of output 1 SPST-NO
Kind of output 2 4...20mA
Regulation for output 1 AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID
Mounting panel
Output 1 electrical parameters 240VAC/3A
Controlled parameter range 1999...9999, depends on temperature sensor
Supply voltage 90...260V AC
Operating temperature 10...50°C
Kind of display used 2x LED 4 digits
Body dimensions 96 x 96 x 83mm
The programming method foil keypad
Mounting hole diameter 91x91mm
Display height 1 14mm
IP rating IP20
Display 2 height 13mm
Kind of output 3 SPST-NO
Output 3 electrical parameters 240VAC/3A

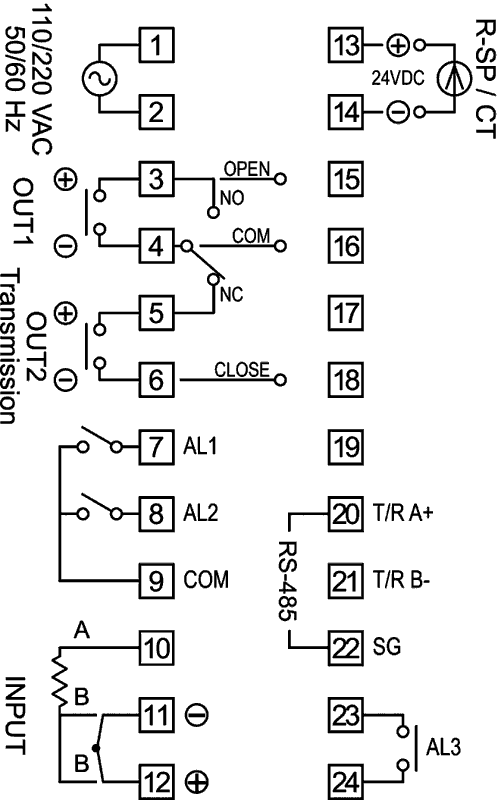

Output configuration  VIEW

Additional functions:
  • heating or cooling control
  • led bar
  • non-volatile EEPROM memory
  • scroll menu
  • LED status indicator
Input 1 properties:
  • RTD
  • thermocouple
Availability: With order
