Loudspeaker - Loudspeaker, miniature, mylar, general purpose, 1W, 8Ù, Ø45x18mm

Prod code: 19308
VS-K45-8 PDF

VS-K45-8
Price:  4.51 €
VAT:  1.08 €
Final price with tax:  5.59 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer VISATON
Sound transducer type loudspeaker
Loudspeaker type miniature, mylar, general purpose
Power 1W
Maximum power 2W
Impedance 8Ù
Body dimensions 45 x 18mm
Operating temperature 25...70°C
Sound frequency 300...14000Hz
Panel cutout diameter 41.5mm
Diameter 45mm
Height 18mm

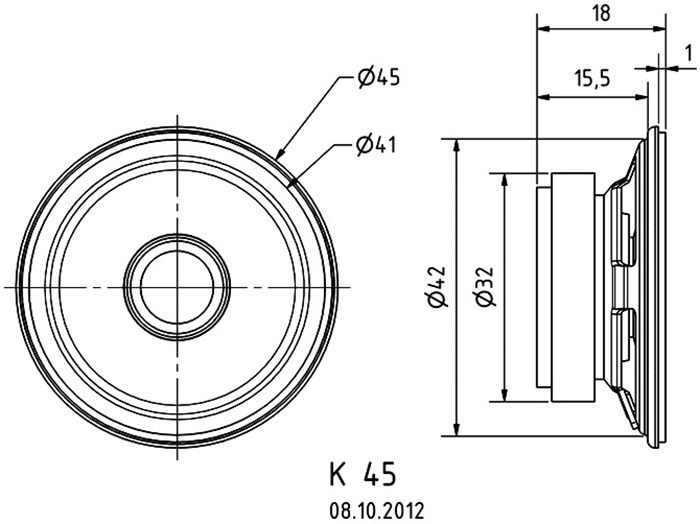

Dimensions  VIEW

Availability: On stock
