Ηχείο - Loudspeaker, miniature, mylar, general purpose, 1W, 8Ω, 18mm

Κωδικός: 19276

LD-SP-UM18/8A PDF

LD-SP-UM18/8A

Τιμή χωρίς ΦΠΑ:  2.08 €
Αξία ΦΠΑ:  0.50 €
Τελική με ΦΠΑ:  2.58 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer LOUDITY
Sound transducer type loudspeaker
Loudspeaker type miniature, mylar, general purpose
Power 1W
Maximum power 2W
Impedance
Operating temperature 20...60°C
Sound frequency 100...20000Hz
Sound level 87dB
Resonant frequency 850Hz
Diameter 18mm
Impedance tolerance 15%
Sound output tolerance 3dB
Height 5.5mm

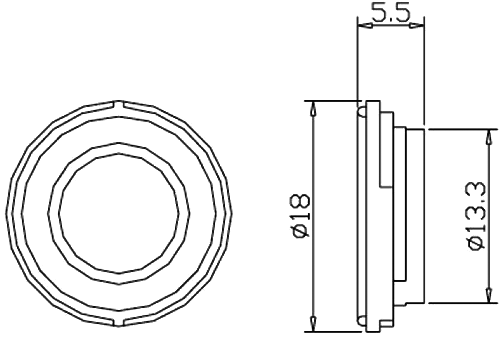

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
