Loudspeaker - Loudspeaker, miniature, general purpose, 0.3W, 8Ù, 100....5000Hz

Prod code: 19278

LD-SP-UM40/8-N

Price:  3.43 €
VAT:  0.82 €
Final price with tax:  4.26 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer LOUDITY
Sound transducer type loudspeaker
Loudspeaker type miniature, general purpose
Power 0.3W
Maximum power 0.5W
Impedance
Operating temperature 20...60°C
Sound frequency 100...5000Hz
Sound level 93dB
Resonant frequency 700Hz
Diameter 40mm
Impedance tolerance 15%
Sound output tolerance 3dB
Height 10.6mm

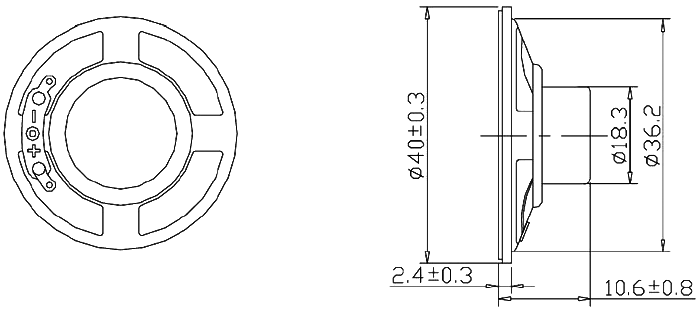

Dimensions  VIEW

Availability: On stock
