Loudspeaker - Loudspeaker, general purpose, 4W, 4Ù, Ø61x26mm, 0.09÷20kHz
Prod code:
19281
PDF
VS-BF45
Click to enlarge
Price:
15.62 €
VAT:
3.75 €
Final price with tax:
19.37 €
Amount:
Usually shipped within 2-3 business days.
Usually shipped within 2-3 business days.
Specifications
Manufacturer
VISATON
Sound transducer type
loudspeaker
Loudspeaker type
general purpose
Power
4W
Maximum power
8W
Impedance
4Ù
Body dimensions
61 x 26mm
Operating temperature
25...70°C
Sound frequency
0.09...20kHz
Panel cutout diameter
45mm

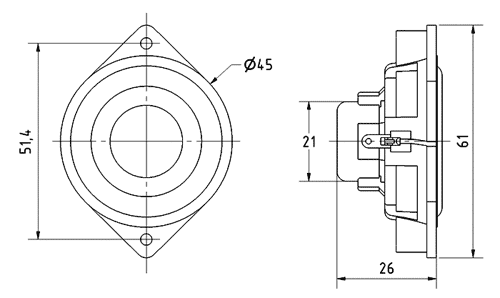

Dimensions
VIEW
Availability:
With order
