Encoder - Encoder incremental, THT, 20imp/revol, Pos 20, two phase A and B

Prod code: 37183

EN11-HSM1AF15 PDF

EN11-HSM1AF15

Price:  3.35 €
VAT:  0.80 €
Final price with tax:  4.15 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer BI TECHNOLOGIES
Type of encoder incremental
Mounting THT
Resolution 20imp/revol.
Number of positions 20
Output signal two phase A and B
Mechanical durability 30000 cycles
Operating voltage 5V DC
Max. operating current 10mA
Operating temperature -30...85°C
Shaft surface D spring
Shaft length 10mm
Shaft diameter 6mm
Cut depth 1.5mm
Key stroke 0.5mm
Encoders features with button

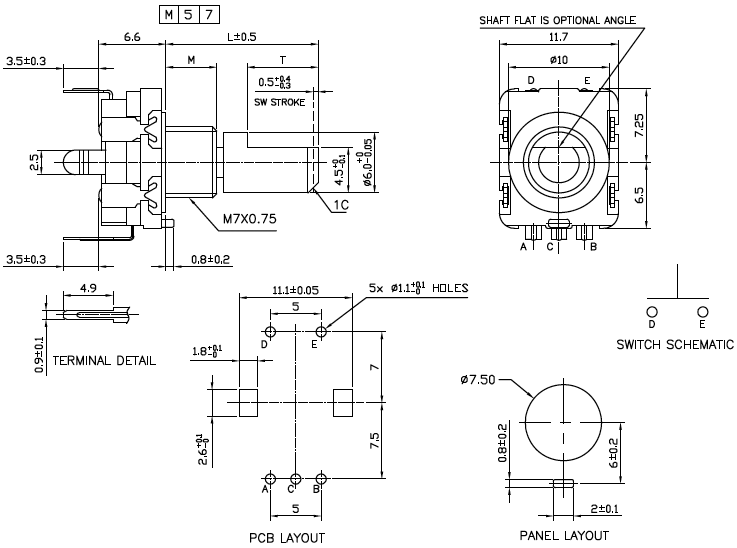

Dimensions  VIEW
Gross weight 5.01 g

Availability: With order
