Encoder - Encoder incremental, THT, 15imp/revol, Pos 30, two phase A and B
Prod code:
38047
PDF
EC11E15244G1
Click to enlarge
Price:
4.69 €
VAT:
1.12 €
Final price with tax:
5.81 €
Amount:
Long delivery time
Long delivery time
Specifications
Manufacturer
ALPS
Type of encoder
incremental
Mounting
THT
Resolution
15imp/revol.
Number of positions
30
Output signal
two phase A and B
Mechanical durability
15000 cycles
Operating voltage
5V DC
Max. operating current
10mA
Operating temperature
-40...85°C
Shaft surface
D spring
Shaft length
13mm
Shaft diameter
6mm
Cut depth
1.5mm
Key stroke
0.5mm
Encoders features
with button

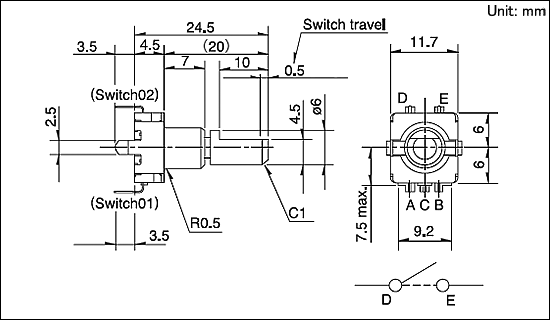

Dimensions
VIEW
Gross weight
3.65 g
Availability:
With order
