DC-DC Converter - Converter DC/DC 2W Uin 24V DC 30mppm/°C 100kHz SIL4PIN 75Vpp

Prod code: 12509

QDC2S-2405S

Price:  5.35 €
VAT:  1.28 €
Final price with tax:  6.63 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer QLT POWER
Converter type DC/DC
Power 2W
Input voltage 24V
Output voltage 5V DC
Case SIL4
Body dimensions 7 x 11.7 x 10mm
Efficiency 75%
Operating temperature 40...85°C
Temperature coefficient 30mppm/°C
Switching frequency 100kHz
Input voltage tolerance 5%
Output voltage tolerance 10%
Output ripple 75Vpp
Protection short circuit protection
Insulation voltage 1000V DC
Min. insulation resistance 1GÙ

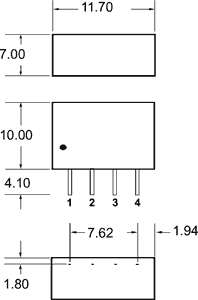

Dimensions  VIEW

Availability: On stock
