Specifications |
| Manufacturer |
MEAN WELL |
| Type of converter |
DC/DC |
| Power |
150W |
| Input voltage |
36...72V |
| Output voltage |
12V DC |
| Output current |
12.5A |
| Kind of case |
906 |
| Body dimensions |
199x110x150mm |
| Weight |
860g |
| Efficiency |
77% |
| Operating temperature |
-10...60°C |
| Protection |
overload, short-circuit, voltage growth |
| Insulation voltage |
2kV |
| Power supply/converter features |
rated parameters obtained at full load |
| Mounting |
for building in |
| Series |
SD-150 |
| Number of outputs |
1 |
| Related items |
DRL-02, DRP-03 |

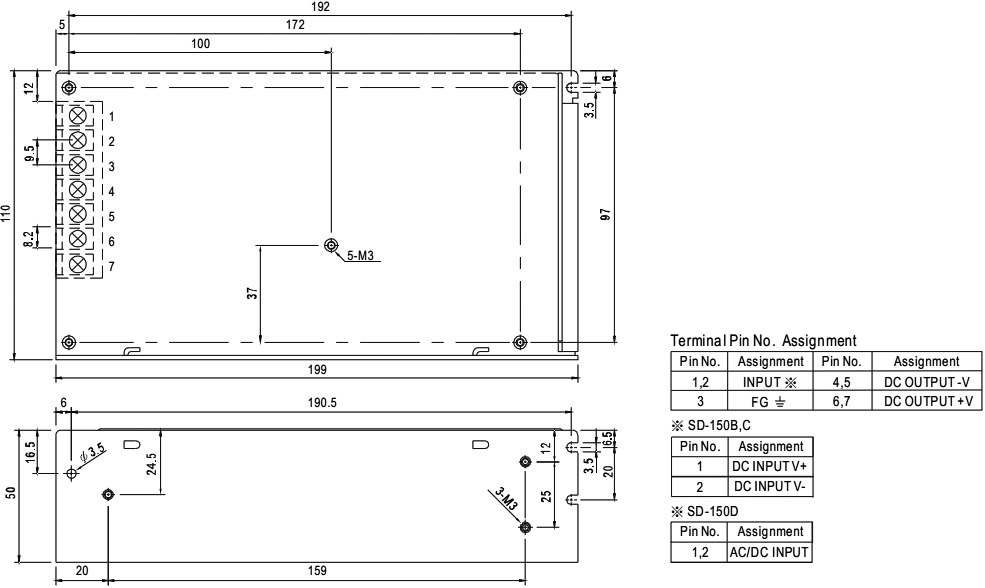

| Dimensions |
 VIEW |
| Gross weight |
803.3 g |
| |
|
