DC-DC Converter - Converter DC/DC, 10W, Uin 18÷36V, Uout 12VDC, Uout2 -12VDC, 2"x1"

Prod code: 37584

TEN10-2422 PDF

TEN10-2422

Price:  42.99 €
VAT:  10.32 €
Final price with tax:  53.31 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Type of converter DC/DC
Power 10W
Input voltage 18...36V
Output voltage 12V DC
Output voltage 2 -12V DC
Output current 415mA
Output current 2 415mA
Case 2"x1"
Body dimensions 50.8x25.4x10.2mm
Weight 32g
Efficiency 82%
Operating temperature -40...85°C
Switching frequency 300kHz
Protection overload,   short-circuit
Insulation voltage 1500V
Series TEN10
Number of outputs 2

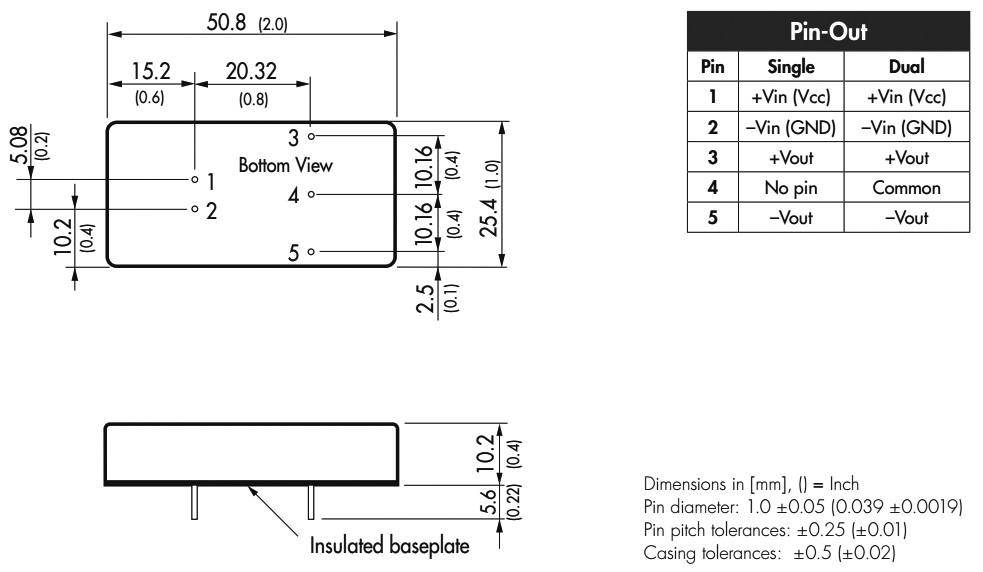

Dimensions  VIEW
Gross weight 30.99 g

Availability: With order
