Connector PCB terminal block, terminal, 10A, 150V, angled 90° - 0.63 EUR : acdcshop.gr


Terminal Blocks - Connector PCB terminal block, terminal, 10A, 150V, angled 90°	Prod code: 42930
PDF	DG381-3.81-3P12

Click to enlarge Connector PCB terminal block, terminal, 10A, 150V, angled 90°

Price:	0.63 €
VAT:	0.15 €
Final price with tax:	0.78 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	DEGSON ELECTRONICS
Type of connector	PCB terminal block
Connector	terminal
Current rating	10A
Rated voltage	150V
Spatial orientation	angled 90°
Mechanical mounting	on PCBs
Contact material	phosphor bronze
Contact plating	tinned
Colour	blue
Flammability rating	UL94V-0
Body material	polyamide 66
Wire size	26AWG...16AWG
Depth	7.4mm
Length	11.43mm
Connector pinout layout	1x3
Wire cross-section	1.5mm²
Contacts pitch	3.81mm
Number of ways	3
Height	8.6mm
Connectors features	assembling possibility
Operating temperature	-40...105°C
Electrical mounting	cage clamp, screw terminal, THT

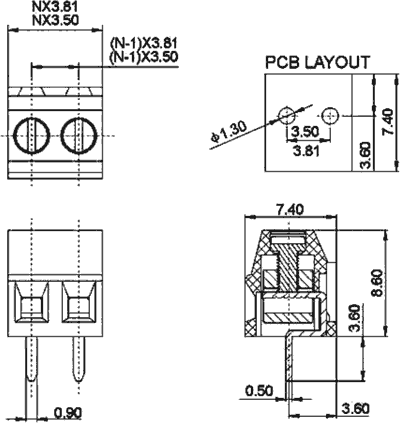

Dimensions	VIEW

Availability: On stock
