Γέφυρες Ανόρθωσης - Bridge rectifier single-phase, Urmax 100V, If 50A, Ifsm 400A

Κωδικός: 41128

GBK50A_SER.pdf PDF

GBK50B-DC

Τιμή χωρίς ΦΠΑ:  1.38 €
Αξία ΦΠΑ:  0.33 €
Τελική με ΦΠΑ:  1.71 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer DC COMPONENTS
Type of bridge rectifier single-phase
Max. off-state voltage 100V
Load current 50A
Max. forward impulse current 0.4kA
Version flat
Case GBK
Electrical mounting THT
Leads flat pin
Kind of package tube
Max. forward voltage 1.1V
Features of semiconductor devices glass passivated

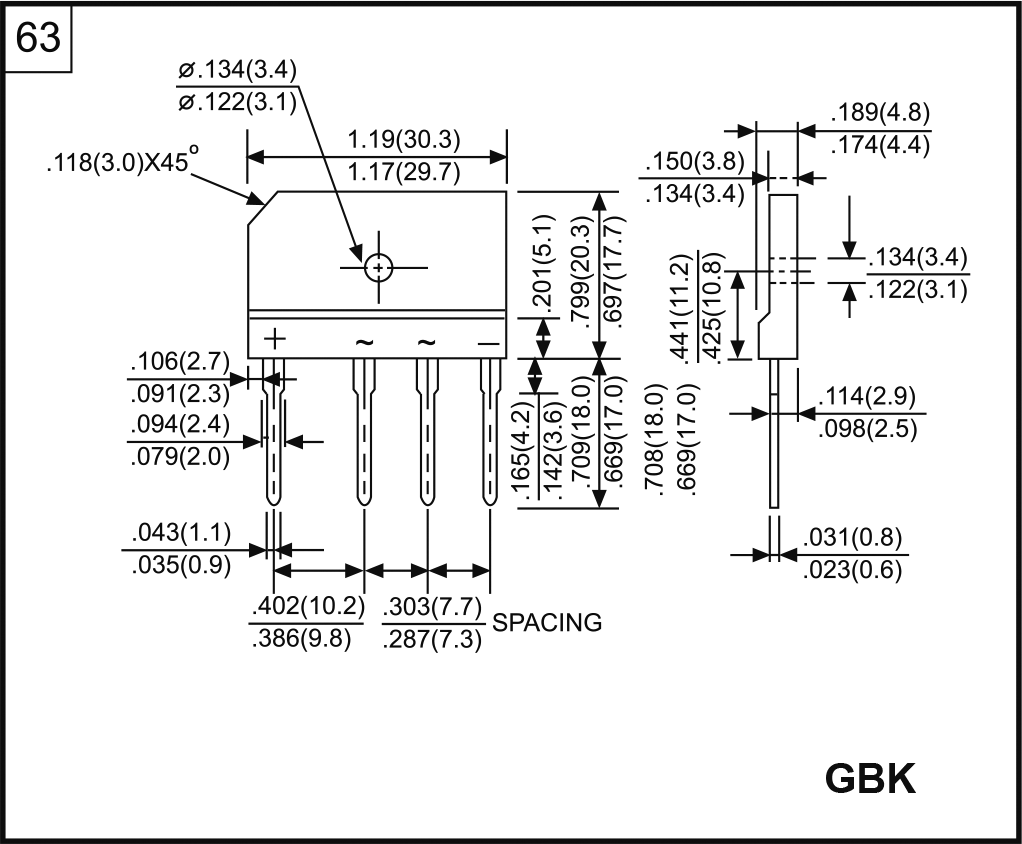

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
