Pwr sup.unit buffer 156.5W 54VDC 53.5VDC 2.7A 0.2A 88÷264VAC - 59.12 EUR : acdcshop.gr


Battery chargers - Pwr sup.unit buffer 156.5W 54VDC 53.5VDC 2.7A 0.2A 88÷264VAC	Prod code: 15120
PDF	AD-155C

Click to enlarge Pwr sup.unit buffer 156.5W 54VDC 53.5VDC 2.7A 0.2A 88÷264VAC

Price:	59.12 €
VAT:	14.19 €
Final price with tax:	73.31 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	buffer
Kind of power supply	modular
Power	156.5W
Output voltage	54V DC
Output voltage 2	53.5V DC
Output current	2.7A
Output current 2	0.2A
Supply voltage	124...370V DC, 88...264V AC
Weight	880g
Electrical connection	terminal block
Protection	battery low protection, overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	2
Operating temperature	10...60°C
Body dimensions	199 x 110 x 50mm
Power supply/converter features	rated parameters obtained at full load
Series	AD-155
Efficiency	84%
Case type	906B
Additional functions	UPS
Associated items	DRL-02, DRP-03A

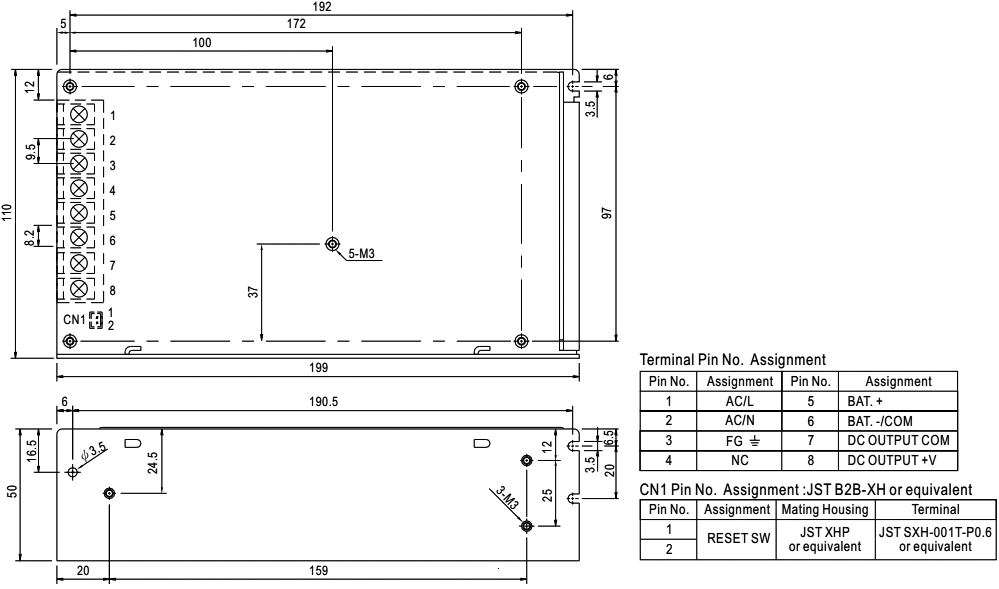

Dimensions	VIEW

Availability: With order
