Fan AC - Fan AC, axial, 230VAC, 120x120x38mm, 210(±10%)m3/h, 46dBA, 2750rpm
Prod code:
18949
PDF
A2123HST-7
Click to enlarge
Price:
17.36 €
VAT:
4.17 €
Final price with tax:
21.53 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
SUNON
Fan type
AC
Fan kind
axial
Supply voltage
230V AC
Fan dimensions
120x120x38mm
Power consumption
22W
Rated current
140mA
Fans efficiency
210 (±10%)m
3
/h
Noise level
46dBA
Bearing type
slide bearing
Rotational rate/speed
2750rpm
Weight
525g
Current and power consumption tolerance
15%
Frequency
50Hz
Min. insulation resistance
500MÙ
Fan material
thermoplastic
Enclosure material
aluminium
Insulation class
B
Operating temperature
10...70°C
Leads
2.8x0.3mm connectors
Static pressure
7.62mm H
2
O
Flammability rating
UL94V-0

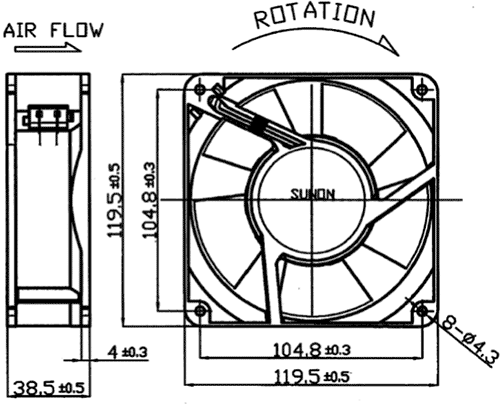

Dimensions
VIEW
Availability:
On stock
