Fan DC - Fan 60x60x10 slide bearing DC12V 23m3/h 25dBa

Prod code: 9670

KD1206PFS2.G9 PDF

KD1206PFS2.G9

Price:  5.87 €
VAT:  1.41 €
Final price with tax:  7.27 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer SUNON
Fan type DC
Fan kind axial
Supply voltage 12V DC
Operating voltage 8...13.8V
Fan dimensions 60x60x10mm
Power consumption 1.1W
Rated current 0.092A
Fans efficiency 23.1m3/h
Noise level 25dBA
Bearing type slide bearing
Rotational rate/speed 3500 (20%)rpm
Weight 29g
Current and power consumption tolerance 15%
Min. insulation resistance 500M
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class E
Operating temperature 10...70C
Leads 2 leads
Static pressure 2.54mm H2O
Flammability rating UL94V-0
Fan motor brushless DC motor
Cable length 300mm
Wire size 28AWG
Additional functions Autorestart

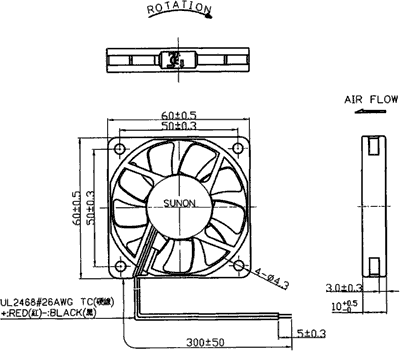

Dimensions  VIEW

Availability: With order
