Terminal Blocks - Terminal block double deck angled 90° 2.5mm2 5mm ways 6 10A

Prod code: 14845

DG500B-5.0-3P14 PDF

DG500B-5.0-3P14

Price:  1.26 €
VAT:  0.30 €
Final price with tax:  1.56 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer DEGSON ELECTRONICS
Connector type terminal block
Connector variant double deck
Spatial orientation angled 90°
Max cable section 2.5mm2
Contacts pitch 5mm
Number of ways 6
Contact plating tinned
Rated current 10A
Flammability rating UL94V-0
Colour green
Contact material brass
Rated voltage 300V
Body material polyamide
Electrical mounting THT, cage clamp, screw terminal
Connectors features assembling possibility
Length 17.5mm
Height 25.2mm
Operating temperature 40...105°C
Depth 21.6mm
Conform to the norm CE
Type of pin configuration 2x3

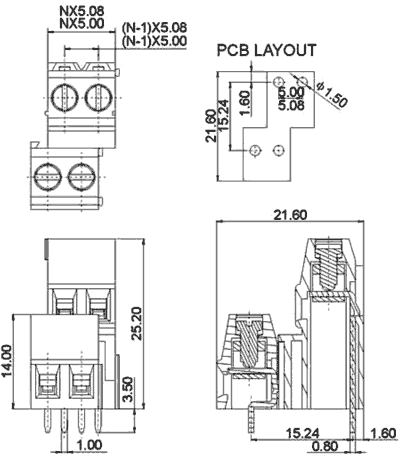

Dimensions  VIEW

Availability: With order
