Terminal Blocks - Connector PCB terminal block, terminal, 24A, 250V, angled 90°

Prod code: 42927
DG300-5.0.pdf PDF

DG300-5.0-3P12
Price:  0.28 €
VAT:  0.07 €
Final price with tax:  0.35 €
Amount:
Usually shipped within 1 business day.
Specifications
ManufacturerDEGSON ELECTRONICS
Type of connectorPCB terminal block
Connectorterminal
Current rating24A
Rated voltage250V
Spatial orientationangled 90°
Connector variantwith wire protector
Mechanical mountingon PCBs
Contact materialbrass
Contact platingtinned
Colourblue
Flammability ratingUL94V-0
Body materialPBT
Wire size22AWG...14AWG
Depth9mm
Length15mm
Connector pinout layout1x3
Wire cross-section2.5mm2
Contacts pitch5mm
Number of ways3
Height12.6mm
Connectors featuresassembling possibility
Operating temperature-30...120°C
Electrical mountingscrew terminal, THT

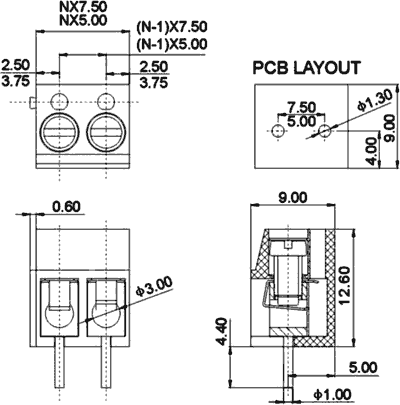

Dimensions VIEW
Availability: On stock
