Relays PCB - Relay SPDT, 5A, DC24V/15mA

Prod code: 1527
T7NS5D4-24 PDF

T7NS5D4-24
Price:  4.45 €
VAT:  1.07 €
Final price with tax:  5.52 €
Amount:
Warning Long delivery time
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating 5 A / 250 VAC
DC contacts rating 10 A / 30 VDC
Contact current max. 10A
Switched voltage max 250V AC, max 100V DC
Relay variant miniature
Mounting PCB
Coil resistance 1.6kÙ
Operate time 10ms
Body dimensions 22.5 x 16.5 x 16.9mm
Release time 5ms
Coil power consumption 360mW
Mechanical durability 100000000cycles
Operating temperature 40...85°C
Weight 11g
Relay series T7N
Switching capacity 2.5kVA
Contact material AgSnO2
Terminal pitch 2mm
Coil current 15mA

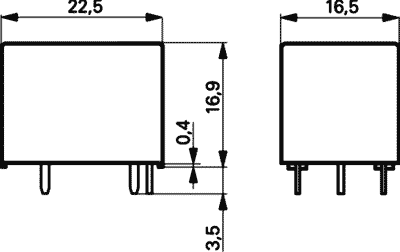

Dimensions  VIEW

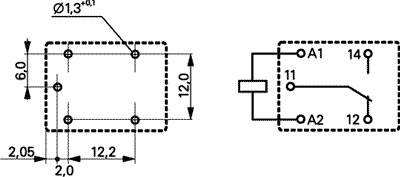

Output configuration  VIEW

Availability: With order
