Relays PCB - Relay SPDT, 12A, AC24V, PCB mounting

Prod code: 1515
RT114524 PDF

RT114524
Price:  4.43 €
VAT:  1.06 €
Final price with tax:  5.49 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V AC
AC contacts rating 12 A / 250 VAC
DC contacts rating 12 A / 24 VDC
Contact current max. 12A
Switched voltage max 400V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 350Ù
Coil voltage min. 18V AC
Operate time 7ms
Body dimensions 29 x 15.7 x 12.7mm
Release time 3ms
Coil power consumption 760mVA
Sealing IP40
Mechanical durability 10000000cycles
Operating temperature 40...70°C
Weight 14g
Relay series RT1
Switching capacity 3kVA
Contact material AgNi
Terminal pitch 3.5mm
Coil current 31.6mA
Number of pins 5
Height 15.7mm
Max surge current 25A

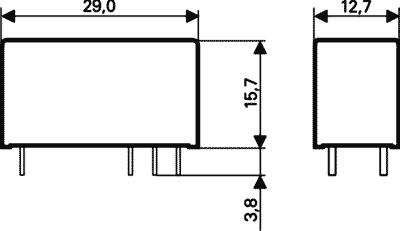

Dimensions  VIEW

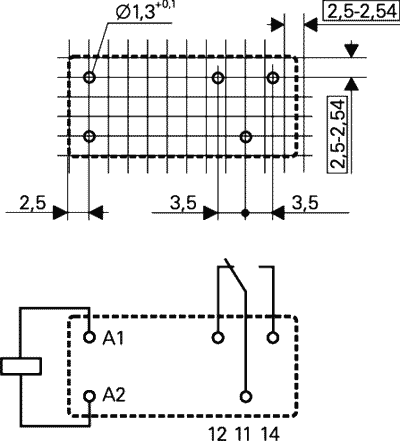

Output configuration  VIEW

Availability: On stock
