Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 7A/250VAC, 7A/30VDC

Prod code: 31246
HF46F-G/012-HS1T PDF

HF46F-G/012-HS1T
Price:  1.48 €
VAT:  0.36 €
Final price with tax:  1.84 €
Amount:
Warning Long delivery time
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 7A / 250V AC
DC contacts rating @R 7A / 30V DC
Contact current max. 10A
Switched voltage max. 30V DC,
Relay variant subminiature
Mounting PCB
Coil resistance 720Ω
Coil voltage min. 9V DC
Coil voltage max. 15.6V DC
Operate time 10ms
Body dimensions 20.5x7.2x15.3mm
Release time 10ms
Coil power consumption 200mW
Operating temperature -40...85°C
Contact resistance 100mΩ
Contact material AgSnO2

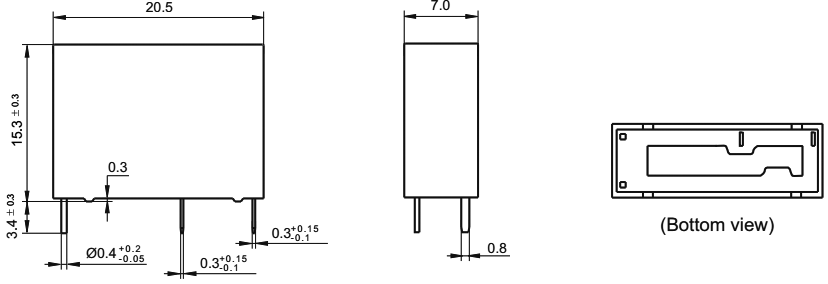

Dimensions  VIEW

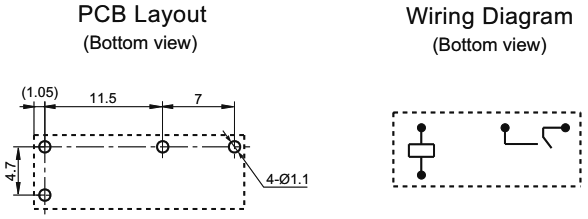

Output configuration  VIEW
Gross weight 2.98 g

Availability: With order
