Relays PCB - Relay electromagnetic, DPST-NO, Ucoil 12VDC, 30A, Series AZ2704

Prod code: 36673

AZ2704-2A-12DTW
Price:  6.39 €
VAT:  1.53 €
Final price with tax:  7.92 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ZETTLER
Type of relay electromagnetic
Contacts configuration DPST-NO
Rated coil voltage 12V DC
Contact current max. 30A
Relay series AZ2704
Relay variant power
Operating temperature -40...85°C
Mounting PCB
Coil resistance 75Ù
Body dimensions 50.5x33.5x36mm
Switched voltage max. 150V DC,   max. 400V AC
Coil power consumption 1.08W
AC contacts rating @R 30A / 277V AC
Contact material AgSnO2
Weight 120g

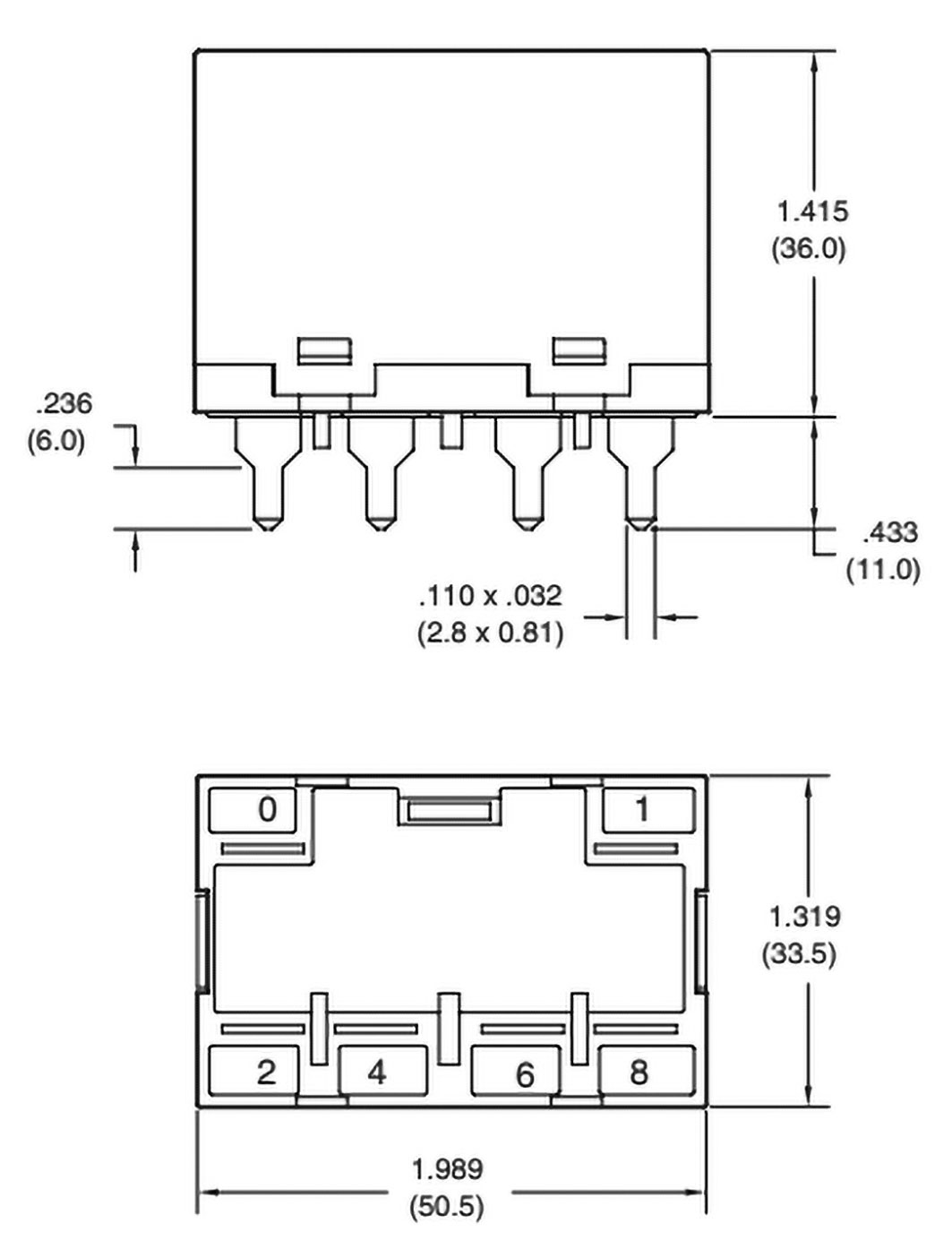

Dimensions  VIEW

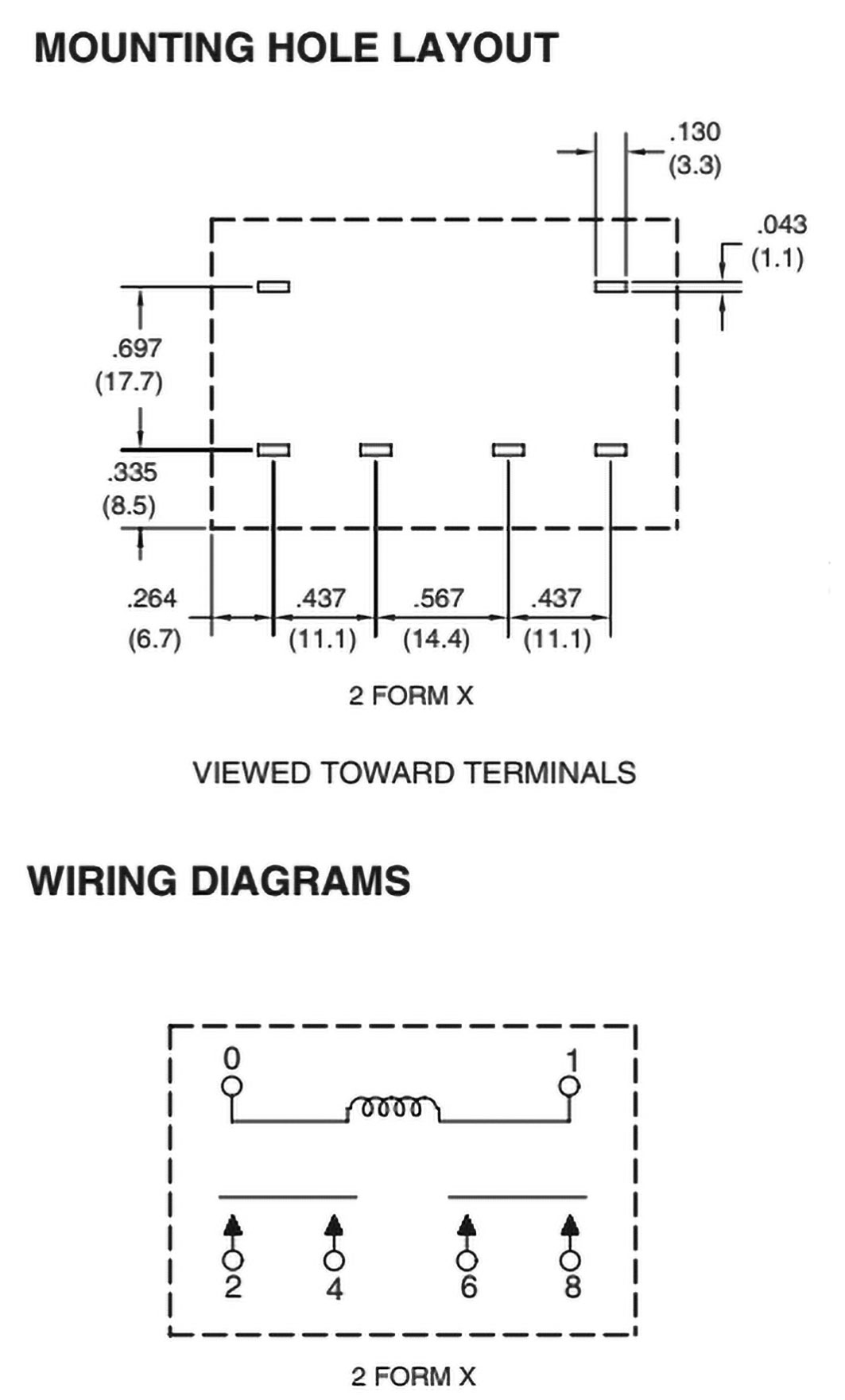

Output configuration  VIEW
Gross weight 84 g

Availability: On stock
