Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 8A, 6A/250VAC, 6A/30VDC

Prod code: 41905
AZ6991.pdf PDF

AZ6991-1C-12DE
Price:  2.53 €
VAT:  0.61 €
Final price with tax:  3.14 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ZETTLER
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
Contact current max. 8A
AC contacts rating @R 6A / 250V AC
DC contacts rating @R 6A / 30V DC
Relay series AZ6991
Switched voltage max. 125V DC, max. 400V AC
Relay variant interface
Mounting PCB
Coil resistance 848Ω
Operate time 8ms
Body dimensions 28x5x15mm
Release time 4ms
Coil power consumption 170mW
Operating temperature -40...85°C
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 5.04mm

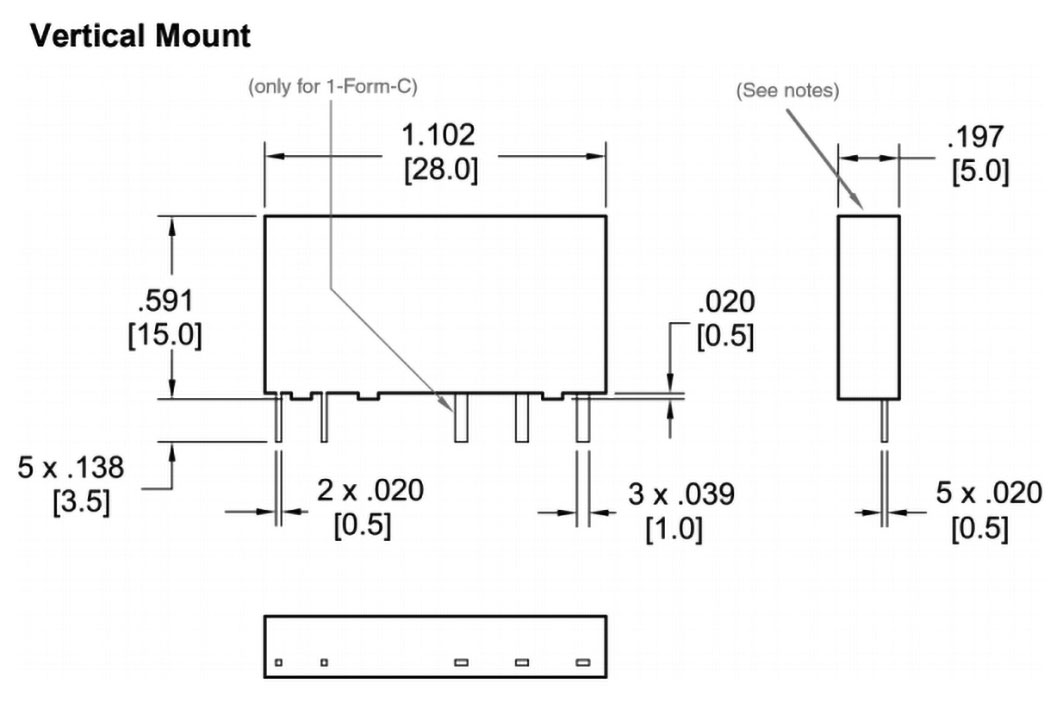

Dimensions  VIEW

Availability: On stock
