Relays PCB - Relay DPDT, 8A, DC12V

Prod code: 1521
RT424012 PDF

RT424012
Price:  3.22 €
VAT:  0.77 €
Final price with tax:  3.99 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating 8 A / 250 VAC
DC contacts rating 8 A / 30 VDC
Contact current max. 8A
Switched voltage max 400V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 360Ù
Coil voltage min. 8.4V DC
Operate time 7ms
Body dimensions 29 x 12.7 x 15.7mm
Release time 2ms
Coil power consumption 400mW
Sealing IP40
Mechanical durability 300000000cycles
Operating temperature 40...70°C
Weight 14g
Relay series RT2
Contact material AgNi 90/10
Terminal pitch 5mm
Number of pins 8
Height 15.7mm

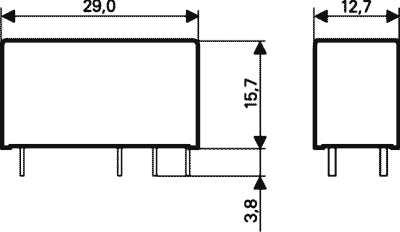

Dimensions  VIEW

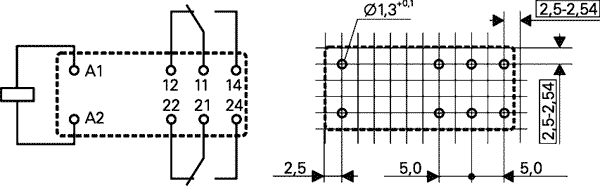

Output configuration  VIEW

Availability: On stock
