LED power supplies - Pwr sup.unit switched-mode, for LED diodes, 60W, 12VDC, 5A, IP67

Prod code: 28566

LPF-60D-12 PDF

LPF-60D-12

Price:  32.13 €
VAT:  7.71 €
Final price with tax:  39.84 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application for LED diodes
Kind of power supply CV+CC
Power 60W
Output voltage 12V DC
Output current 5A
Supply voltage 90...305V AC, 127...431V DC
Sealing IP67
Body dimensions 162.5 x 43 x 32mm
Power supply/converter features rated parameters obtained at full load
Protection overload, overheating, voltage growth, short-circuit
Weight 450g
Operating temperature 40...70°C
Electrical connection 300mm wires
Number of outputs 1
Series LPF-60
Efficiency 86%

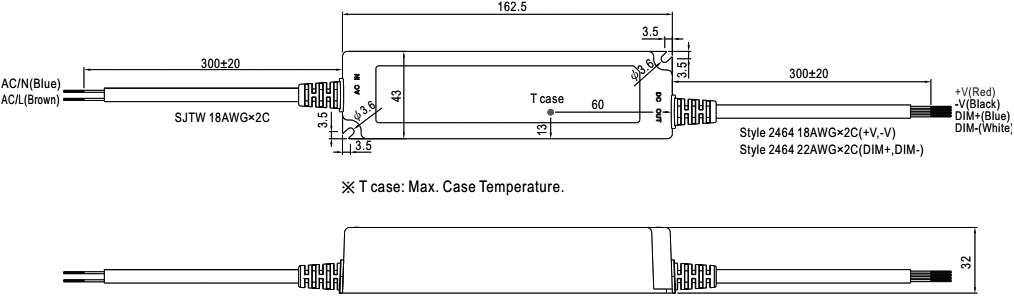

Dimensions  VIEW

Additional functions:
  • active PFC
  • dimming function 1-10VDC
  • PWM controlled dimming function
  • resistance dimming function
Availability: With order
