Τροφοδοτικό LED - Pwr sup.unit switched-mode, for LED diodes, 192W, 12VDC, 16A

Κωδικός: 26387

HLG-240H-12 PDF

HLG-240H-12

Τιμή χωρίς ΦΠΑ:  69.71 €
Αξία ΦΠΑ:  16.73 €
Τελική με ΦΠΑ:  86.43 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application for LED diodes
Kind of power supply CV+CC
Power 192W
Output voltage 12V DC
Output current 16A
Supply voltage 90...305V AC, 127...431V DC
Sealing IP67
Body dimensions 244.2 x 68 x 38.8mm
Power supply/converter features rated parameters obtained at full load
Protection overload, overheating, voltage growth, short-circuit
Weight 1.3kg
Operating temperature 40...70°C
Electrical connection 300mm wires
Number of outputs 1
Additional functions active PFC
Series HLG-240H
Efficiency 90%
Case type 994C

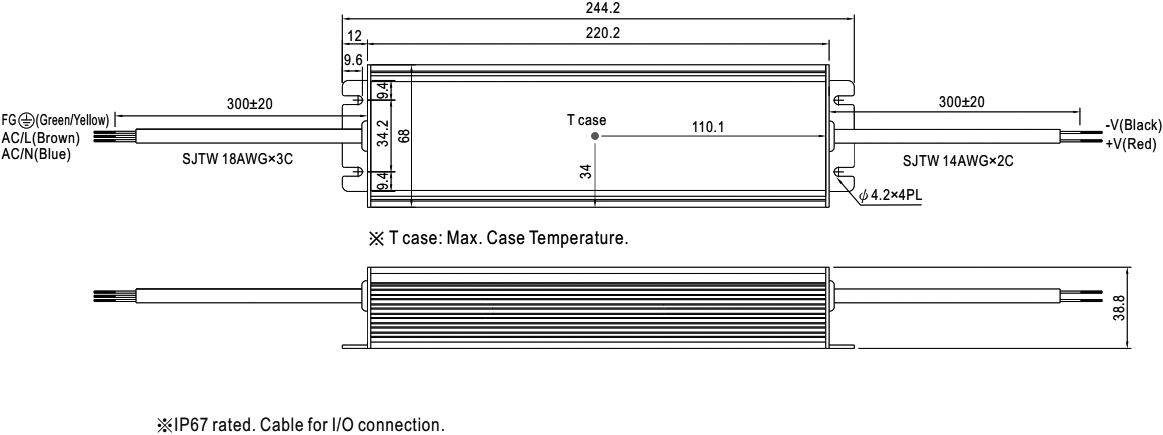

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
