LED power supplies - Pwr sup.unit switched-mode, for LED diodes, 25.2W, 42VDC, 0.6A

Prod code: 25802

LPF-25-42 PDF

LPF-25-42

Price:  23.96 €
VAT:  5.75 €
Final price with tax:  29.70 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application for LED diodes
Kind of power supply CV+CC
Power 25.2W
Output voltage 42V DC
Output current 0.6A
Supply voltage 90...305V AC, 127...431V DC
Sealing IP67
Body dimensions 40 x 148 x 32mm
Power supply/converter features rated parameters obtained at full load
Protection overload, overheating, voltage growth, short-circuit
Weight 360g
Operating temperature 35...70°C
Electrical connection 300mm wires
Number of outputs 1
Additional functions active PFC
Series LPF-25
Efficiency 86%

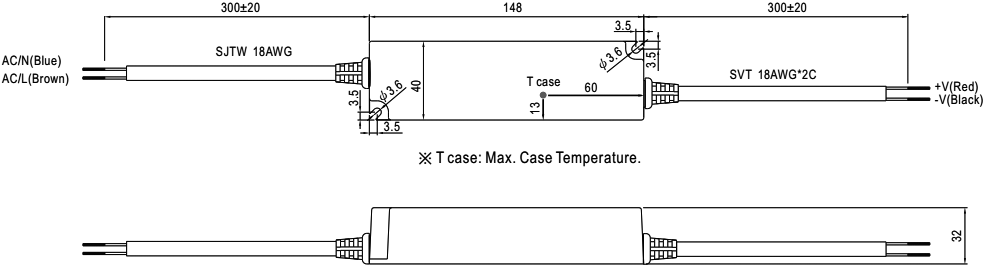

Dimensions  VIEW

Availability: With order
