Pwr sup.unit pulse, 76.8W, 24VDC, 3.2A, 85....264VAC, 120....370VDC - 30.97 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 76.8W, 24VDC, 3.2A, 85....264VAC, 120....370VDC	Prod code: 790
PDF	DR-75-24

Click to enlarge Pwr sup.unit pulse, 76.8W, 24VDC, 3.2A, 85....264VAC, 120....370VDC

Price:	30.97 €
VAT:	7.43 €
Final price with tax:	38.40 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	76.8W
Output voltage	24V DC, 24...28V DC
Output current	3.2A
Supply voltage	85...264V AC, 120...370V DC
Electrical connection	terminal block
Mounting	DIN
Body dimensions	55.5 x 125 x 100mm
Weight	600g
Number of outputs	1
Operating temperature	10...60°C
Protection	overload, overheating, overvoltage, short-circuit
Efficiency	80%
Power supply/converter features	rated parameters obtained at full load
Series	DR-75
Case type	923

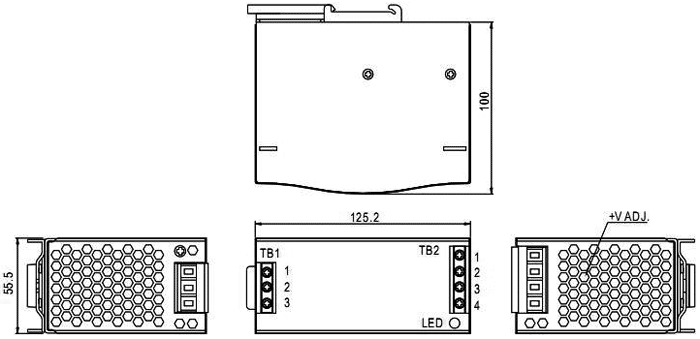

Dimensions	VIEW

Availability: On stock
