Din rail power supply - Power supply switching, for DIN rail,slim, 480W, 24VDC, 20A
Prod code:
42625
PDF
PDF
NDR-480-24
Click to enlarge
Price:
103.47 €
VAT:
24.83 €
Final price with tax:
128.30 €
Amount:
Usually shipped within 2-3 business days.
Usually shipped within 2-3 business days.
Specifications
Manufacturer
MEAN WELL
Type of power supply
switching
Power
480W
Output voltage
24V DC
Output voltage range
24...28V DC
Output current
20A
Electrical connection
terminal block
Mounting
for DIN rail mounting
Body dimensions
85.5x125.2x128.5mm
Number of outputs
1
Operating temperature
-20...70°C
Efficiency
92.5%
Manufacturer series
NDR-480
Caution!
rated parameters obtained at full load
Kind of power supply
for DIN rail, slim
Protection
anti-overload OPP, anti-overvoltage OVP, overheating OTP, short circuit protection SCP
Additional functions
active PFC
output voltage correctness indication

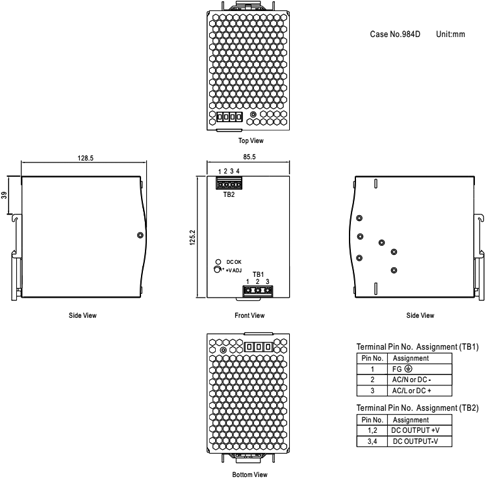

Dimensions
VIEW
Availability:
With order
