Din rail power supply - Power supply switched-mode, slim, 480W, 48VDC, 10A, 90....264VAC

Prod code: 39630

NDR-480-48 PDF

NDR-480-48

Price:  130.00 €
VAT:  31.20 €
Final price with tax:  161.20 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Kind of power supply slim
Power 480W
Output voltage 48V DC
Output voltage range 48...55V DC
Output current 10A
Electrical connection terminal block
Mounting DIN
Body dimensions 85.5x125.2x128.5mm
Weight 1.5kg
Number of outputs 1
Operating temperature -20...70°C
Protection anti-overload OPP,   anti-overvoltage OVP,   overheating OTP,   short circuit protection SCP
Efficiency 92.5%
Power supply/converter features rated parameters obtained at full load
Manufacturer series NDR-480

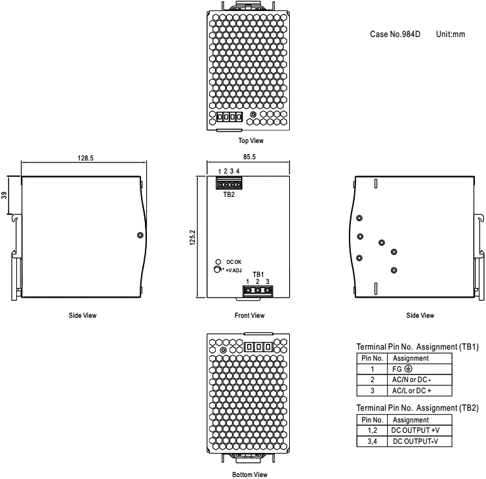

Dimensions  VIEW
Gross weight 1510.7 g

Supply voltage
  • 90...264V AC
  • 127...370V DC
Additional functions
  • active PFC
  • output voltage correctness indication
Availability: With order
