Din rail power supply - Power supply switched-mode, 156W, 24VDC, 6.5A, 90....264VAC, 600g

Prod code: 39433

EDR-150-24 PDF

EDR-150-24

Price:  28.46 €
VAT:  6.83 €
Final price with tax:  35.29 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Power 156W
Output voltage 24V DC
Output voltage range 24...28V DC
Output current 6.5A
Supply voltage 90...264V AC,   127...370V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 40x125.2x113.5mm
Weight 600g
Number of outputs 1
Operating temperature -20...60°C
Protection overheating,   overload,   overvoltage,   short-circuit
Efficiency 87%
Additional functions output voltage correctness indication
Power supply/converter features rated parameters obtained at full load
Series EDR-150
Kind of case 992D

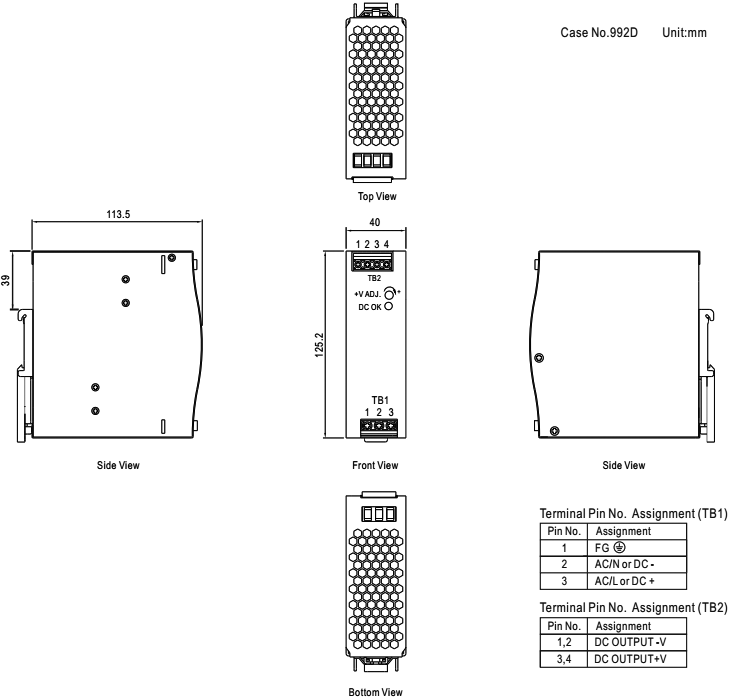

Dimensions  VIEW
Gross weight 572.1 g

Availability: With order
