power supplies - Pwr sup.unit pulse, 75.8W, 5VDC, 24VDC, 12VDC, 7A, 1.5A, 0.4A, 650g

Prod code: 17280

TP-75-D PDF

TP-75-D

Price:  51.56 €
VAT:  12.37 €
Final price with tax:  63.94 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 75.8W
Output voltage 5V DC
Output voltage 2 24V DC
Output voltage 3 12V DC
Output current 7 (1.5...10)A
Output current 2 1.5 (0.2...2.5)A
Output current 3 0.4 (0...0.6)A
Supply voltage 90...264V AC, 127...370V DC
Weight 650g
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 3
Operating temperature 10...60°C
Body dimensions 179 x 99 x 33mm
Power supply/converter features rated parameters obtained at full load
Series TP-75
Efficiency 70%
Case type 920A
Additional functions active PFC
Associated items DRL-02, DRP-02A

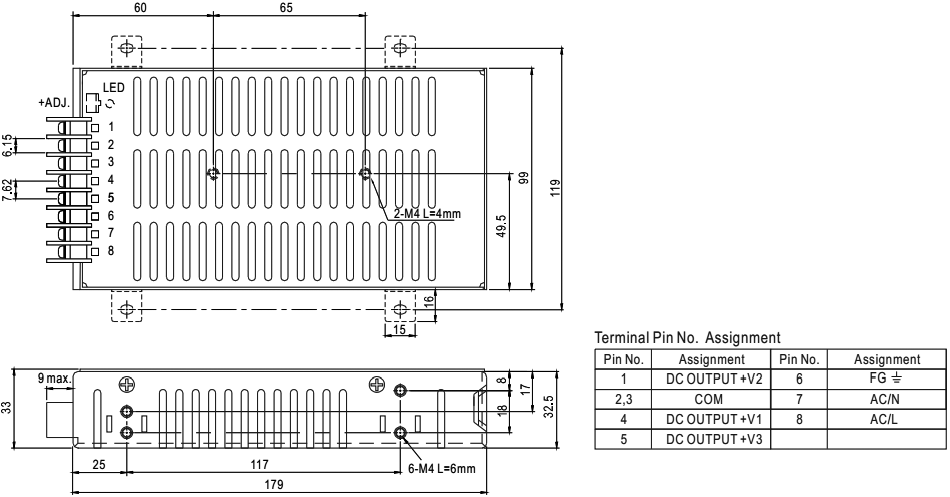

Dimensions  VIEW

Availability: With order
