LED power supplies - Power supply switched-mode, LED, 264W, 12VDC, 22A, 90÷305VAC, IP67

Prod code: 36091

HLG-320H-12 PDF

HLG-320H-12

Price:  87.75 €
VAT:  21.06 €
Final price with tax:  108.81 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Application LED
Kind of power supply CV+CC
Power 264W
Output voltage 12V DC
Output current 22A
Supply voltage 90...305V AC,   127...431V DC
IP rating IP67
Body dimensions 252x90x43.8mm
Protection overheating,   overload,   short-circuit,   voltage growth
Weight 1.88kg
Operating temperature -40...70°C
Electrical connection 300mm wires FG L N
Number of outputs 1
Additional functions active PFC
Series HLG-320H
Efficiency 91%
Kind of case 202A
Power supply/converter features rated parameters obtained at full load

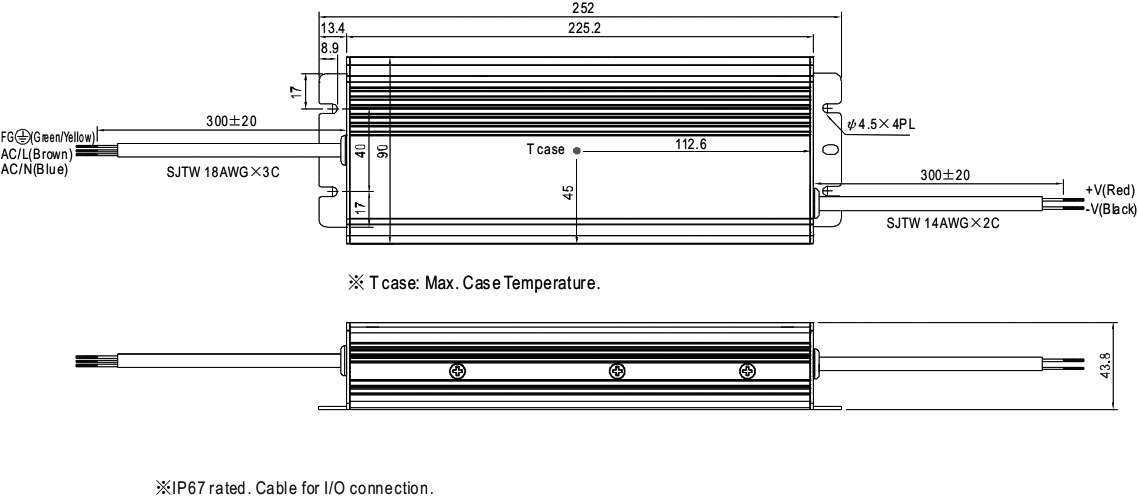

Dimensions  VIEW
Gross weight 1886.5 g

Availability: With order
