Tact Switch - Microswitch, 1-position, SPST-NO, 0.05A/12VDC, SMT, 1N, 5.2x5.2mm

Κωδικός: 19625

TACTB-64K-F

Τιμή χωρίς ΦΠΑ:  0.23 €
Αξία ΦΠΑ:  0.05 €
Τελική με ΦΠΑ:  0.28 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer NINIGI
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 0.05 A / 12 VDC
Mounting SMT
Switching torque 1N
Body dimensions 5.2 x 5.2mm
Button height 1.5mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 4.8x8mm
Operating temperature 25...70°C
Leads for PCB

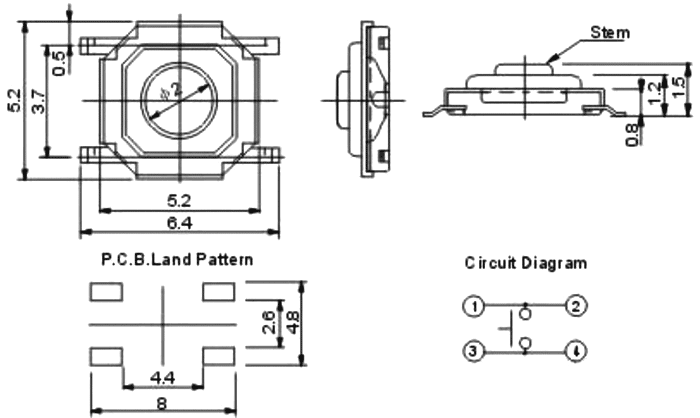

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
