Specifications |
| Manufacturer |
CANAL ELECTRONIC |
| Switch type |
microswitch |
| Stable positions number |
1-position |
| Contacts configuration |
SPST-NO |
| DC contacts rating |
0.05 A / 12 VDC |
| Mounting |
SMT |
| Switching torque |
1.6N |
| Body dimensions |
4.7 x 3.5mm |
| Button height |
2.5mm |
| Switching method |
OFF-(ON) |
| Button shape |
rectangular |
| Terminal pitch |
1.7x5.15mm |
| Operating temperature |
20...70°C |
| Actuator colour |
white |
| Leads |
for PCB |
| Max. contact resistance: |
500mΩ |
| Min. insulation resistance |
1000MΩ |
| Mechanical durability |
100000cycles |
| Contact material |
steel |
| Contact plating |
silver plated |
| Soldering temperature |
230°C / 5 s |
| Body material |
stainless steel, thermoplastic |
| Terminals material |
brass |
| Terminals plating |
silver plated |

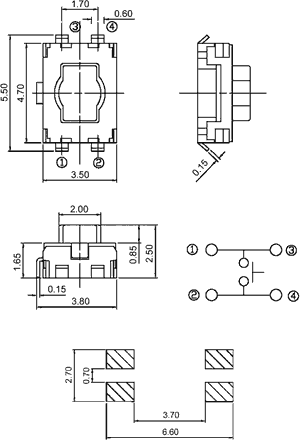

| Dimensions |
 VIEW |
| |
|
