Tact Switch - Switch microswitch bistable DC load:0.1A/30V LED THT

Prod code: 10371
PB6136FAL-4 PDF

PB6136FAL-4
Price:  2.38 €
VAT:  0.22 €
Final price with tax:  2.95 € 1.13 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 2-position
Contacts configuration DPDT
DC contacts rating 0.1 A / 30 VDC
Mounting THT
Illumination LED
Backlight colour blue
Switching torque 1.5N
Body dimensions 12.5mm
Button height 12.5mm
Switching method ON-ON
Button shape round
Terminal pitch 2.54x5.08mm
Operating temperature 10...80°C
Actuator colour white
Leads for PCB, straight
Max. contact resistance: 50mÙ
Min. insulation resistance 100MÙ
Electrical life 10000cycles

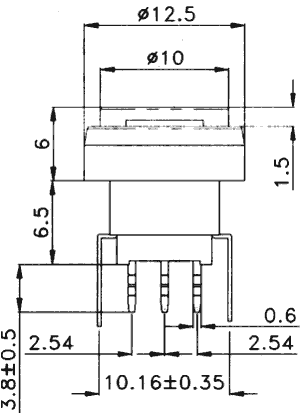

Dimensions  VIEW
Output configuration  VIEW

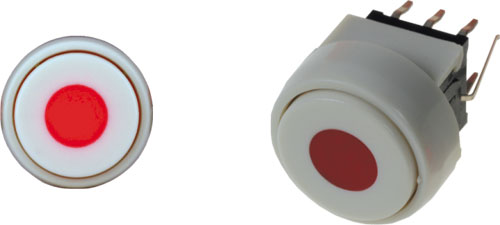

Picture of product  VIEW
Contacts layout  VIEW

Availability: On stock
