Connector D-sub - Contact, male, gold-plated, 10AWG....8AWG, soldering, for cable, 40A

Κωδικός: 38788

DHPS-M40 PDF

DHPS-M40

Τιμή χωρίς ΦΠΑ:  2.30 €
Αξία ΦΠΑ:  0.55 €
Τελική με ΦΠΑ:  2.85 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer CONEC
Type of connector Special D-Sub
Connector contact
Kind of connector male
Contact plating gold-plated
Electrical mounting soldering
Mechanical mounting for cable
Maximum current 40A
Contact material copper alloy
Operating temperature -55...155°C
Diameter 4.8mm
Wire size 10AWG...8AWG

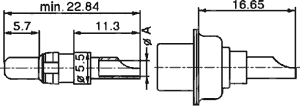

Dimensions  VIEW
Gross weight 2.2 g

Διαθεσιμότητα: Με παραγγελία
